Скачать Datasheet
Код товара:

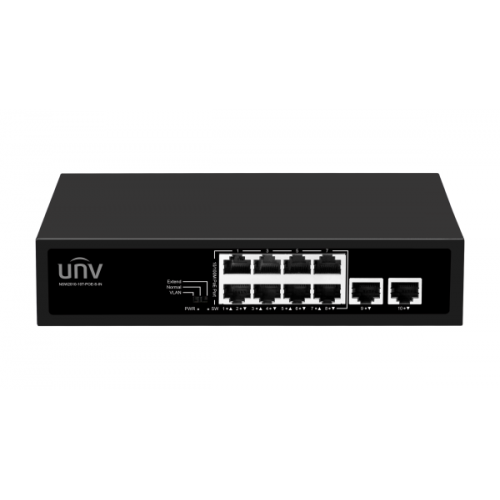

Модель: NSW2010-10T-POE-S-IN
Модель: NSW2010-10T-POE-S-IN
- Расстояние PoE - 250 метров
- 8 портов PoE × 100 Мбит/с
- 10 порта RJ45×100 Мбит/с
- Бюджет PoE: 96 Вт и до 30 Вт на порт
-
Цена: 16 120 тенге
Получить оптовую цену для монтажников и реселлеров
UNIVIEW NSW2010-10T-POE-S-IN купить в Алматы и с доставкой по Казахстану в дистрибьюторском центре...
| NSW2010-10T-POE-S-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 10×10/100Mbps network ports (RJ45), including 8 PoE ports | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3x | |||||||
| Switching capacity | 2 Gbps | |||||||
| Forwarding performance | 1.49Mpps | |||||||
| Packet Buffer | 768K bit | |||||||
| MAC | 2K | |||||||
| Weight | 0.61 kg | |||||||
| Max.Power | 101W | |||||||
| Max.PoE Power | Max capacity: 96W Max capacity for single port: 30W Mode A: 1/2+, 3/6- | |||||||
| Dimensions (W×D×H) | Product : 200 x 118 x 44mm Package : 245*190*60mm | |||||||
| Cooling Fans | 0 | |||||||
| Working Temperature | -10°C to 50°C (14°F to 122°F) | |||||||
| Operating humidity | 10%～90% (noncondensing) | |||||||
| Working Mode | Default(Normal mode) : All ports can communicate with each other., EXTEND(Surveillance mode): Transmission distance up to 250 meters., VLAN(Secure mode): Downlink ports can communicate only with uplink ports. | |||||||
| Indicator Light | PWR（power supply），SW（DIP），1-6 Green（Link&Data） | |||||||
| Packing | ||||||||
| Packing | Carton MEAS: 520*320*400mm Packing Qty: 20 units Packing Weight: 18.8KG | |||||||
