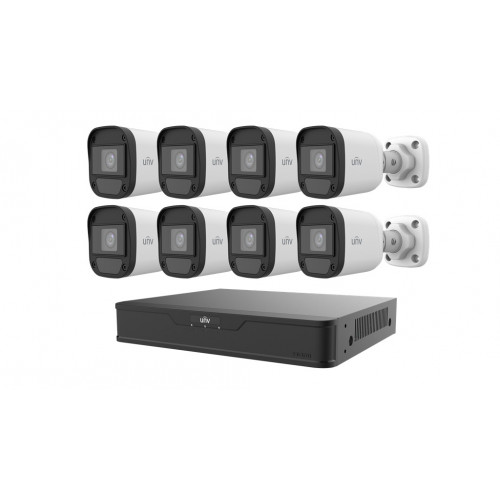

Модель: KIT/XVR301-08Q3/8*UAC-B115-F28
Модель: KIT/XVR301-08Q3/8*UAC-B115-F28
- 8 HD-камер
- Разрешение 5 Мпикс — 2.8 мм
- Аналоговый видеорегистратор
- 8 каналов HD, 4 канала IP
-
Цена: По запросу
Получить оптовую цену для монтажников и реселлеров
UNIVIEW KIT/XVR301-08Q3/8*UAC-B115-F28 купить в Алматы и с доставкой по Казахстану в дистрибьюторском центре...
| Model | KIT/XVR301-08Q3/8*UAC-B115-F28 | ||||||||
| Video/Audio Input | |||||||||
| Analog Video Input | 8-ch, BNC | ||||||||
| IP Video Input | 4-ch (only IP up to 12-ch), each channel up to 8MP | ||||||||
| Supported Analog Camera Types | AHD: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps TVI: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps CVI: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps CVBS |
||||||||
| Audio Input | 1-ch, RCA | ||||||||
| Audio Compression | G.711U | ||||||||
| Video/Audio Output | |||||||||
| CVBS Output | 1-ch, BNC | ||||||||
| VGA Output | 1920×1080p/60Hz, 1920×1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | ||||||||
| HDMI Output | 3840×2160/30Hz, 1920×1080p/60Hz, 1920×1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | ||||||||
| Audio Output | 1-ch, RCA | ||||||||
| Synchronous Playback | 8 | ||||||||
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 | ||||||||
| Two-way Audio | 1-ch, RCA | ||||||||
| Snapshot | 8-ch snapshot, up to 704×576 resolution | ||||||||
| Network | |||||||||
| Incoming Bandwidth | 40Mbps (Up to 56Mbps after all analog channel conversion) | ||||||||
| Outgoing Bandwidth | 64Mbps | ||||||||
| Remote Users | 128 | ||||||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | ||||||||
| Encoding | |||||||||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite/1080P/720P/CIF | ||||||||
| Recording Frame Rate | 8MP Lite@8fps, 5MP Lite@12fps, 4MP Lite@15fps, 1080P@15fps, 720P@30fps | ||||||||
| Audio Sample Rate | 8KHz, 16 bit per channel | ||||||||
| Audio Bit Rate | 64Kbps per channel | ||||||||
| Decoding | |||||||||
| Decoding Capability | Analog: 8 × 8MP Lite@8, 8 × 5MP Lite@12, 8 × 4MP Lite@15, 8 × 1080P@15 IP: 1 × 8MP@30, 2 × 4MP@30, 4 × 1080P@30 |
||||||||
| Hard Disk | |||||||||
| SATA | 1 SATA interface | ||||||||
| Capacity | Up to 8TB for each HDD | ||||||||
| Smart Alarm | |||||||||
| VCA Detection | Ultra Motion Detection (UMD) for analog: 8-ch | ||||||||
| VCA Search | Behavior Search | ||||||||
| General Alarm | Motion detection | ||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||||
| External Interface | |||||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||||
| USB Interface | Rear panel: 2 × USB2.0 | ||||||||
| RS485 | 1 | ||||||||
| Alarm In | 4-ch | ||||||||
| Alarm Out | 1-ch | ||||||||
| General | |||||||||
| Power Supply | 12V DC | ||||||||
| Power Consumption | ≤10W (without HDD) | ||||||||
| Working Environment | -10°C ~ +55°C (+14°F ~ +131°F), Humidity ≤90% RH (non-condensing) | ||||||||
| Dimensions (W×D×H) | 260mm × 226mm × 47mm (10.2" × 8.9" × 1.8") | ||||||||
| Weight (without HDD) | ≤1.1Kg (2.42lb) | ||||||||
| Camera | |||||||||
| Camera Model | UAC-B115-F28 × 8 | ||||||||
| Pixel | 5MP | ||||||||
| Sensor Size | 1/2.7" | ||||||||
| Minimum Illumination | 0.02lux (F2.0, AGC ON) 0 lux (IR on) |
||||||||
| Lens | 2.8mm | ||||||||
| Lens Mount | M12 | ||||||||
| Angle of View | H: 102.2° V: 53.9° D: 124.8° | ||||||||
| Illuminator | One IR illuminator | ||||||||
| Illumination Distance | 20m | ||||||||
| Lifetime | ≥60,000 hours | ||||||||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V); 2MP: 1920(H)×1080(V) | ||||||||
| Frame Rate | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
||||||||
| Shutter Time | PAL: 1/25s–1/50000s NTSC: 1/30s–1/50000s |
||||||||
| Exposure Mode | 4 modes: Global (default), BLC, HLC, DWDR | ||||||||
| Day/Night | 3 modes: Auto (default), Day, Night | ||||||||
| Digital Noise Reduction | 2D | ||||||||
| White Balance | Two modes: Auto (default), Manual | ||||||||
| WDR | DWDR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Supports 180° horizontal flip, 180° vertical flip | ||||||||
| Power | DC 12V (±25%), with reverse polarity protection and surge protection | ||||||||
| Power Consumption | Max 3.6W | ||||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | ||||||||
| Temperature | -30°C to 60°C (-22°F to 140°F) | ||||||||
| Humidity | ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Ingress Protection | IP67 | ||||||||
| Mount | Surface mount (default), optional backbox, pole mount bracket | ||||||||
| Dimensions | 142mm × 63mm × 65mm | ||||||||
| Material | Plastic | ||||||||
| Weight | 135g (0.30lb) | ||||||||
