Скачать Datasheet
Код товара:

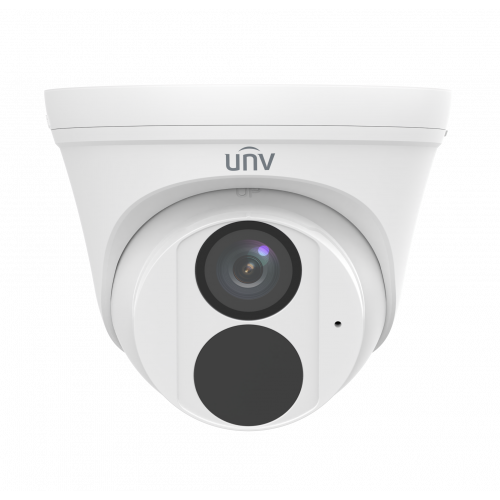

Модель: IPC3614LE-ADF28K
Модель: IPC3614LE-ADF28K
- Максимальное разрешение 4 Мпикс
- Фиксированный объектив 2.8 мм
- ИК-подсветка дальностью до 30 м
- Встроенный микрофон
-
Цена: 39 200 тенге
Получить оптовую цену для монтажников и реселлеров
UNIVIEW IPC3614LE-ADF28K купить в Алматы и с доставкой по Казахстану в дистрибьюторском центре...
| IPC3614LE-ADF28K | IPC3614LE-ADF40K | ||||||||
| Camera | |||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Lens | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |||||
| 4.0 | 90 | 36 | 18 | 9 | |||||
| Angle Of View (H) | 105.3° | 79.7° | |||||||
| Angle Of View (V) | 57° | 41.6° | |||||||
| Angle Of View (O) | 136.9° | 98.0° | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| S/N | >52dB | ||||||||
| IR Range | Up to 30m (98ft) IR range | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Defog | Digital Defog | ||||||||
| WDR | 120db | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 Code Profile | Baseline profile, Main Profile, High Profile | ||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps |
||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 4 areas | ||||||||
| Motion Detection | Up to 4 areas | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||
| Dewarping | Support | ||||||||
| HLC | Supported | ||||||||
| BLC | Supported | ||||||||
| Network | |||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
| Client | EZStation EZView EZLive |
||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||
| Audio | |||||||||
| Audio Compression | G.711 | ||||||||
| Suppression | Supported | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256 GB | ||||||||
| Network Storage | ANR | ||||||||
| Interface | |||||||||
| Network | 10/100M Base-TX Ethernet | ||||||||
| Built-in Mic | Supported | ||||||||
| Certifications | |||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||||||
| General | |||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
| Power consumption: Max 3W | |||||||||
| Dimensions (Ø x H) | Φ118 x 96mm (Φ4.6” x 3.8”) | ||||||||
| Net Weight | 0.35kg (0.77lb) | ||||||||
| Material | Front cover：metal Rear cover：plastic Bracket：plastic Bottom plate：metal |
||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 2KV | ||||||||
| Ingress Protection | IP67 | ||||||||
