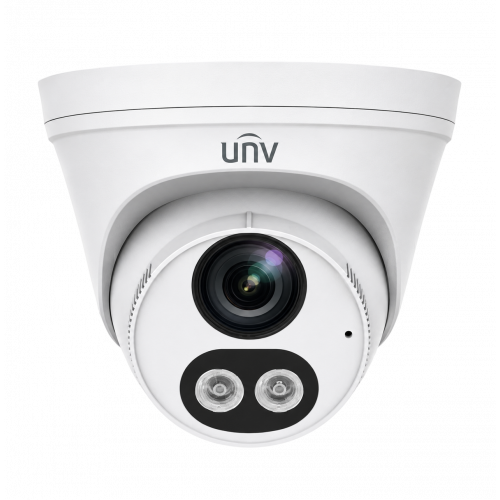

Модель: IPC3612LB-AF28K-WL
Модель: IPC3612LB-AF28K-WL
- Максимальное разрешение 2 Мпикс
- Фиксированный объектив 2.8 мм
- LED-подсветка дальностью 30 м
- Встроенный микрофон
-
Цена: По запросу
Получить оптовую цену для монтажников и реселлеров
UNIVIEW IPC3612LB-AF28K-WL купить в Алматы и с доставкой по Казахстану в дистрибьюторском центре...
| IPC3612LB-AF28K-WL | |||||||
| Camera | |||||||
| Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.005 lux ( F1.6, AGC ON) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||||
| WDR | DWDR | ||||||
| S/N | >52dB | ||||||
| Lens | |||||||
| Lens type | 2.8mm@F1.6 | ||||||
| Iris | Fixed | ||||||
| Field of View (H) | 101.1° | ||||||
| Field of View (V) | 55.0° | ||||||
| Field of View (D) | 111.0° | ||||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 45.0(147.6ft) | 18.0(59.1ft) | 9.0(29.5ft) | 4.5(14.8ft) | |||
| Illuminator | |||||||
| Warm Light Range | Up to 30m (98ft) | ||||||
| Light On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra H.265,H.265, H.264 | ||||||
| Frame Rate | Main Stream: 2MP (1920*1080),Max 30fps; 720P (1280*720),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Video Bit Rate | 128 Kbps~6144Kbps | ||||||
| U-code | Support(Main stream) | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Video stream | Dual streams | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| Smart Illumination | Support | ||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||||
| Dewarping | N/A | ||||||
| HLC | Support | ||||||
| BLC | Support | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Motion detection, Audio Detection | ||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711U, G.711A | ||||||
| Audio Bitrate | 64 Kbps | ||||||
| Two-way Audio | N/A | ||||||
| Suppression | Support | ||||||
| Sampling Rate | 8KHz | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 128 GB | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, Qos, ,SSL/TLS | ||||||
| Compatible Integration | ONVIF (Profile S, Profile T, Profile G),API,SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF | ||||||
| Client | EZStation EZLive EZView |
||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
| Interface | |||||||
| Audio I/O | N/A | ||||||
| Alarm I/O | N/A | ||||||
| Serial Port | N/A | ||||||
| Built-in Mic | Support | ||||||
| Built-in Speaker | N/A | ||||||
| WIFI | N/A | ||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | N/A | ||||||
| Certification | |||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) |
||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||
| Protection | IP67 (IEC 60529) | ||||||
| General | |||||||
| Power | DC12V(±25%) , PoE(IEEE 802.3af) | ||||||
| Power consumption: Max 7.3W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (Ø x H) | Φ118 x 98mm (Ø4.6” x 3.9”) | ||||||
| Weight | 0.29kg(0.64lb) | ||||||
| Material | Metal + Plastic | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge protection | 4KV | ||||||
| Reset button | N/A | ||||||
